LED Strip Fixture

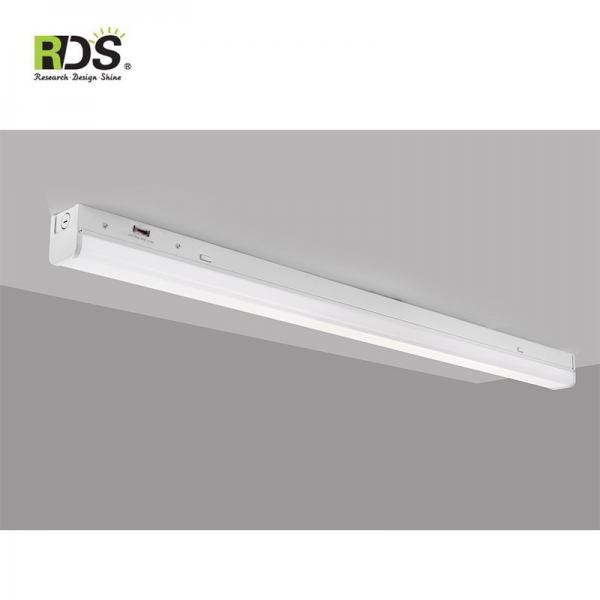

TC Led Strip Fixture

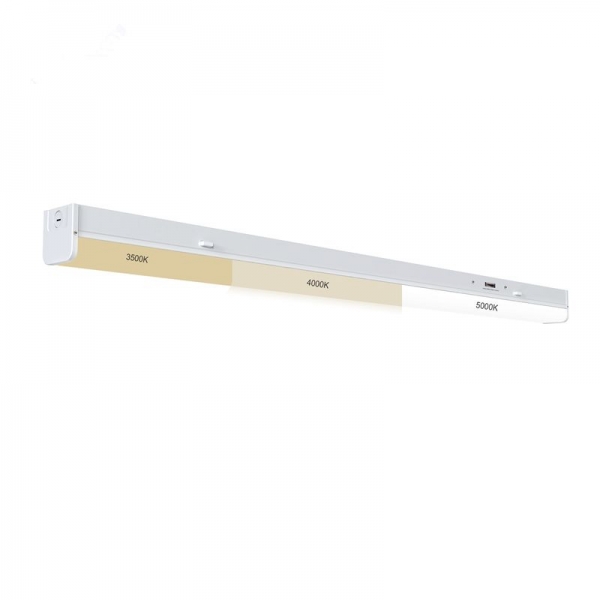

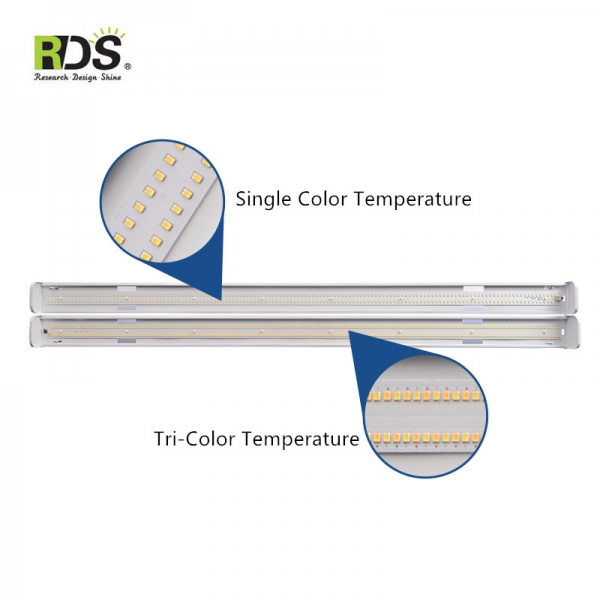

· Color temperature changing from 3500k to 5000k
· 0-10v dimming,isolated driver,flicker free
· 4ft &8ft,20w,35w 64w and 90w
· Up to 130lm/w ,0-10v dimming
· AC120-277V or AC120-347V
· Driver brand: UL class 2
· PIR induction, energy saving
· Beam Angle: 120°
· Colour rendering index (CRI): RA>80
· Easy installation - Pendant chains,surface mount and linkable
· Certification - ETL listed,DLC Premium 5.0
· 5 years warranty.
Application:
Garages, Storage room, Workshop, Equipment room, Workplace, Warehouse, Basement. Offices, Hallways, School, Hospital, Apartment etc.
    4 foot length
    CRI 83
    0-10V dimming
    Polycarbonate diffuser
    Damp Location rated
    Ready for ceiling or wall mounting
    Cord Adders
    W186xx – 18/3 600V White Cord, specify length
    Cord End Adders
    N01 – 5-15P 125V 15A Straight Plug
    N02 – 6-15P 250V 15A Straight Plug
    N04 – L5-15P 125V 15A Locking Plug
    N05 – L6-15P 250V 15A Locking Plug
    N06 – L7-15P 277V 15A Locking Plug
    N07 – 5-20P 125V 20A Straight Plug
    N08 – 6-20P 250V 20A Straight Plug
    N09 – 7-20P 277V 20A Straight Plug
    N10 – L5-20P 125V 20A Locking Plug
    N11 – L6-20P 250V 20A Locking Plug
    N12 – L7-20P 277V 20A Locking Plug
    N13 – L24-20P 347V 20A Locking Plug
    Motion Sensor Adders
    M1 – PIR motion sensor, On/Off, daylight sensor, 120-347V
    M4 – Microwave motion sensor, dimming, daylight sensor, 120-277V
    M5 – Microwave motion sensor, dimming, daylight sensor, 347-480V
    M10 – PIR motion sensor, dimming, daylight sensor, 120-347V
    M40 – Leviton®, PIR motion sensor, On/Off, 120-347V
    M50 – Leviton®, PIR motion sensor with offset adapter, high mount lens, dimming, daylight sensor, 120-347V
    M51 – Leviton®, PIR motion sensor with offset adapter, low mount lens, dimming, daylight sensor, 120-347V
    M52 – Leviton®, PIR motion sensor with offset adapter, high mount aisle mask, dimming, daylight sensor, 120-347V
    M53 – Leviton®, PIR motion sensor with offset adapter, low mount aisle mask, dimming, daylight sensor, 120-347V

    Emergency Battery Adders
    EB1 – 8W Emergency Battery Backupv
