Low Glare Led High Bay Light

· New Low glare design
· Lumileds Luxeon 3030 LED, Ra>80, LM80 standard.
· Meanwell HBG Series driver
· Installation: Chain mount, hook mount.
· IP65 waterproof.
· Light source: Lumileds Luxeon 3030 LED
· Luminous flux: up to 140lm/w
· Beam Angle: 70°/110°
· Colour rendering index (CRI): RA>80
· Operating voltage range: 100-277VAC and 90-305VAC
What‘s in the package:
· 1 × UFO High Bay Light
· 1 × Eye hook mount
· 1 × Safety Rope
· 1 × User Manual
· Suitable for damp location use.
· Suitable for operation in ambient not exceeding 50°C.

Description

Features of Low Glare Led High Bay Light:
·Luminous Efficiency: 140lm/w;
·Input Voltage: AC90-305V  50/60Hz
·Power: 100w 150w 200w
·Color temperature: 4000K  5000K  5700K
·Color Rendering Index:Ra>80
·Power Factor: >0.95
·Beam Angle: 70° /110°
·Working Temperature: -30~50℃
·Storage Temp: -40~80℃
·Environment Humidity: <95%
·LED Type:SMD3030
·Lifespan: >50,000hours
·On-off times:>100,000 Times

Model

Color Temp

Power

Luminance Efficacy

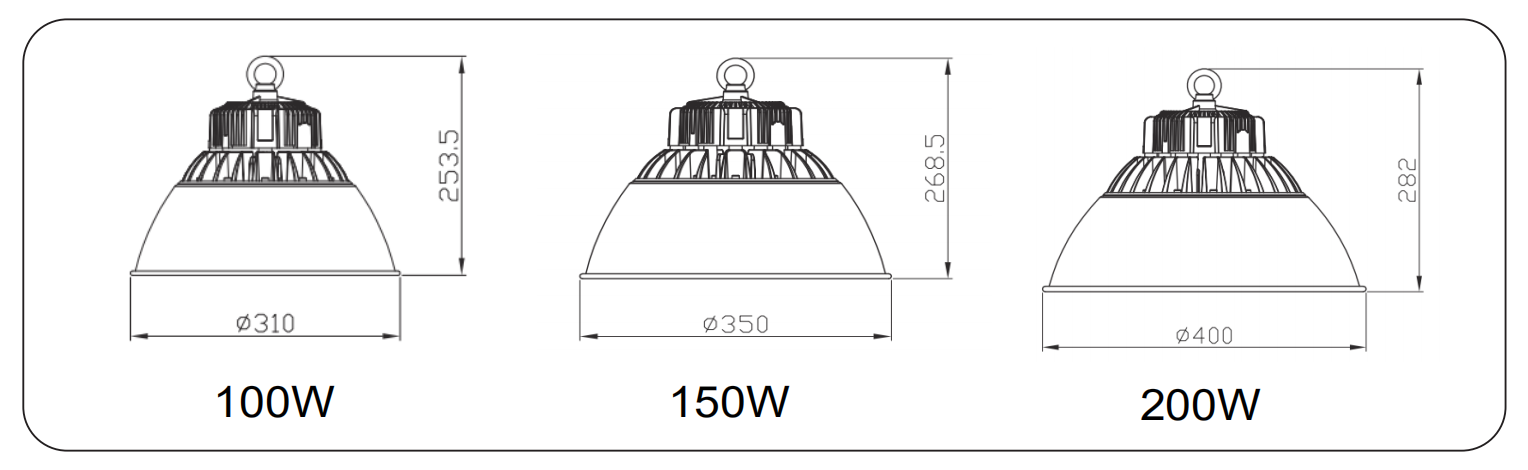

Size(mm)

Carton Size(mm)

GW/1PCS

RDS-UHB5B-100-CC-XX

4000/5000/5700K

100W

20900lm

Φ310*H253.5mm

430*430*315mm

2.8kg

RDS-UHB5B-150-CC-XX

4000/5000/5700K

150W

28500lm

Φ350*H268.5mm

380*380*295mm

3.6kg

RDS-UHB5B-200-CC-XX

4000/5000/5700K

200W

38000lm

Φ400*H282mm

340*380*329mm

4.6kg
